Bearing Handling Tool

The safe solution for handling large and heavy bearings!


The safe solution for handling large and heavy bearings. The Bearing Handling Tool is available in two sizes: for an outer diameter of 300–500 mm or 500–700 mm.

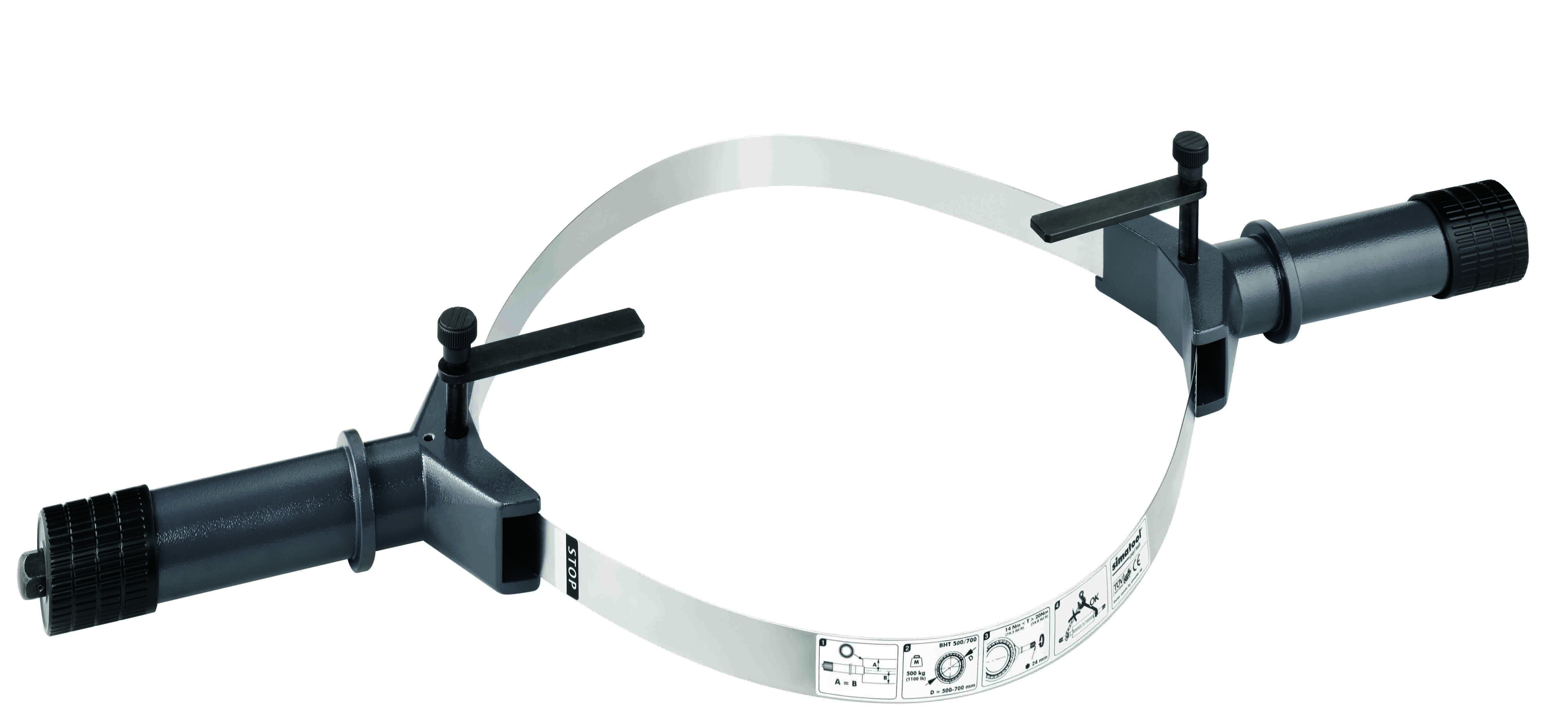

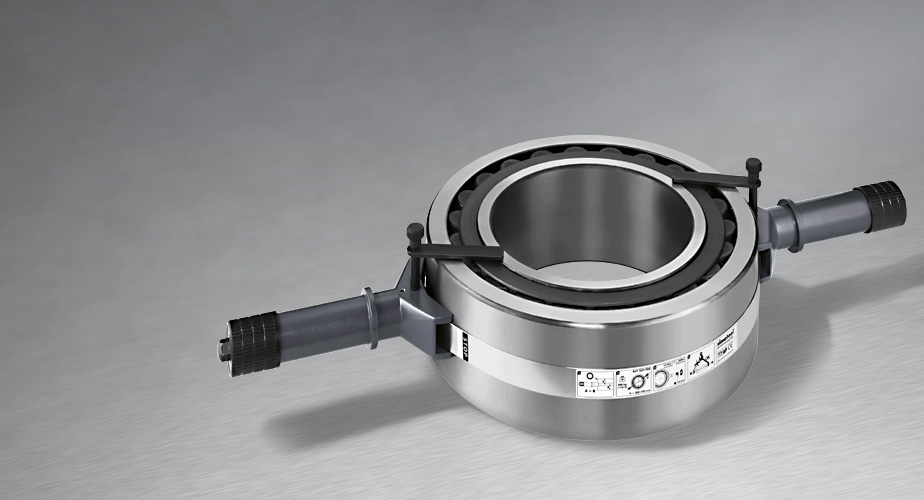

The simatool Bearing Handling Tool consists of two handles, two turning handles and steel strips that enclose the bearing at the outer race. Uniform tightening of the handles in the two support arms locks the steel strips to the outer diameter of the bearing. The two anti-rotation bars prevent relative movement of the inner/outer race in the case of self aligning ball bearings and spherical roller bearings.

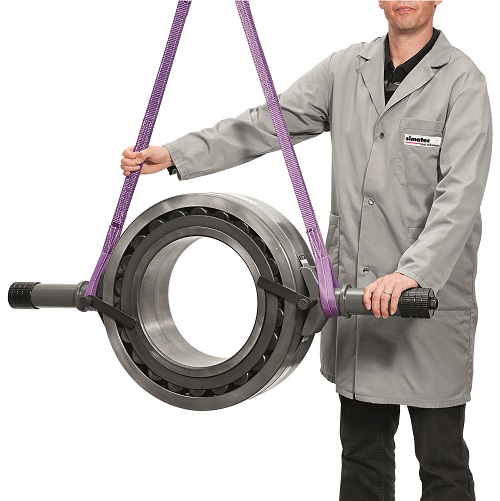

Bearing Handling Tool The safe solution for handling large and heavy bearings. The simatool Bearing Handling Tool is ideally suited to professional, safe handling and lifting of heavy bearings. With the Bearing Handling Tool bearings can be fitted onto horizontal or vertical shaft. It is even possible to safely handle spherical ball bearings without damaging them thanks to two opposite anti-rotation bars that are positioned against the bearing's inner race.

  • Safe handling
  • Max. handling weight 500 Kg
  • Prevents damage to bearings
  • 50% time-saving compared to conventional mounting methods
  • Can be used for heated bearings with a temperature up to 160°C
  • Easy mounting aid for large bearings

How Bearing Handling Tool Works?
